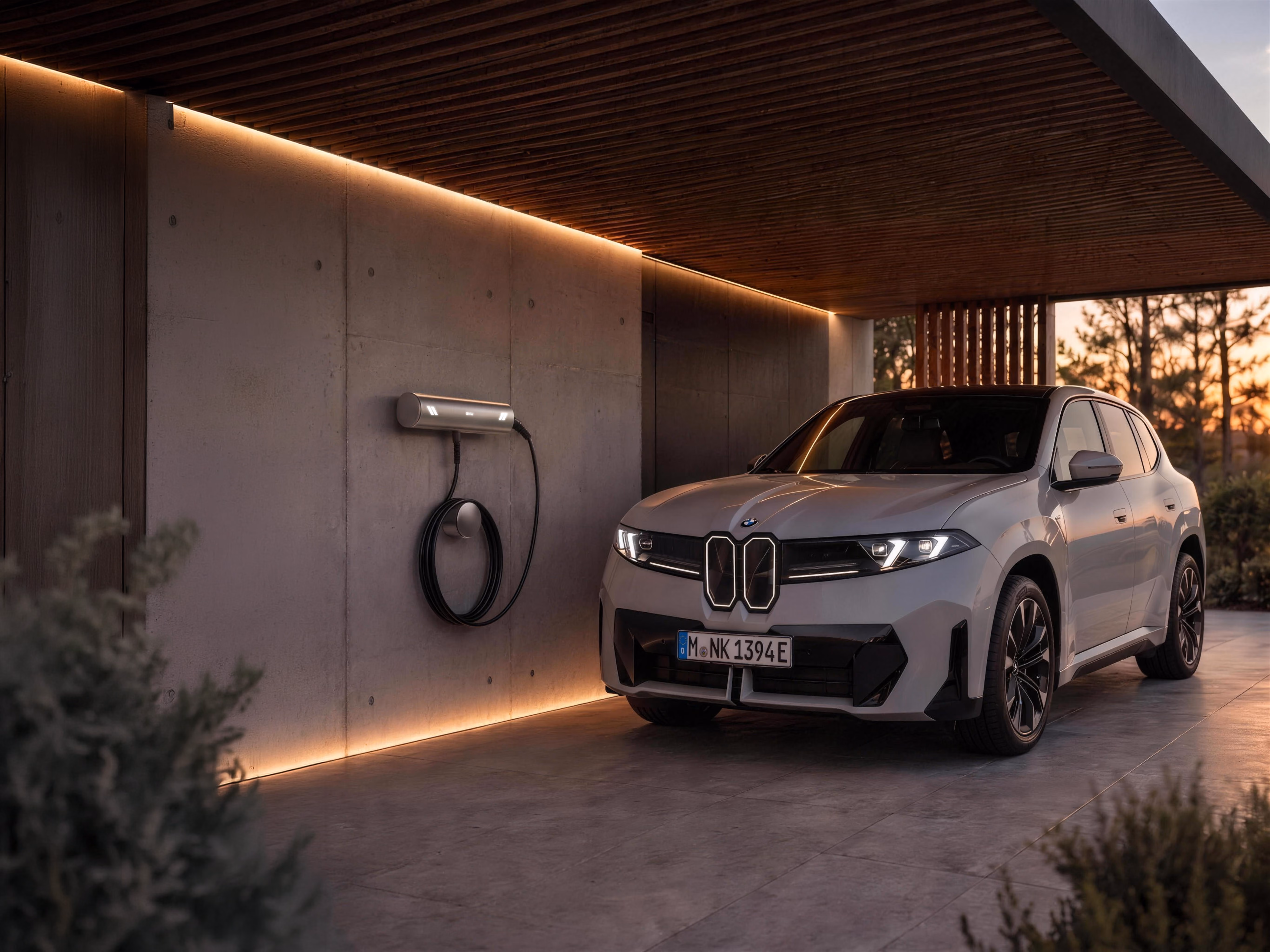

THE NEUE KLASSE design
meets next-gen AC charging.
Some products are molded.
Others are machined.
Stainless Steel Body.
A premium, durable alternative to plastic wallboxes.
Astreea® charging stations are crafted from premium stainless steel, designed to withstand demanding, high-traffic environments and harsh weather. Their robust construction shields internal components from moisture, dust, and temperature variations, ensuring seamless operation.
Charging authorization
using BMW Digital Key.
Sync & Charge Experience.
Charging should feel as seamless as entering the car.
Astreea® Chargers offer advanced connectivity options, including NFC, Wi-Fi, Ethernet, and Bluetooth, allowing for seamless activation by simply holding your device near the station to instantly start charging.
Real-Time Power Control
with user management
22 kW AC Charging
Configurable charging power adjustable within seconds.
The Astreea® Smart Charger is available with single or dual 22 kW AC charging modules, delivering scalable performance for residential, workplace and commercial applications.
The Smartest AC Wallbox
BMW Could Test Today.
AC Bidirectional Charging
V2H and V2G architecture, ready for joint validation with BMW.
Built on a bidirectional AC architecture supporting both Vehicle-to-Home (V2H) and Vehicle-to-Grid (V2G) applications. Designed in accordance with ISO 15118-20 to enable future energy services, grid interaction and joint validation with BMW vehicles.
Fleet management
simplified.
Dynamic Load Management
OCPP-based load balancing
Intelligently distributes available power across one or multiple chargers to prevent overloads and maximize charging efficiency. OCPP-based load balancing dynamically adapts to changing site conditions, making it ideal for homes, workplaces and multi-charger installations.
Created for those who
travel into the future.
Minimal Footprint. Maximum Performance.
One of the Most Compact AC Chargers Available.

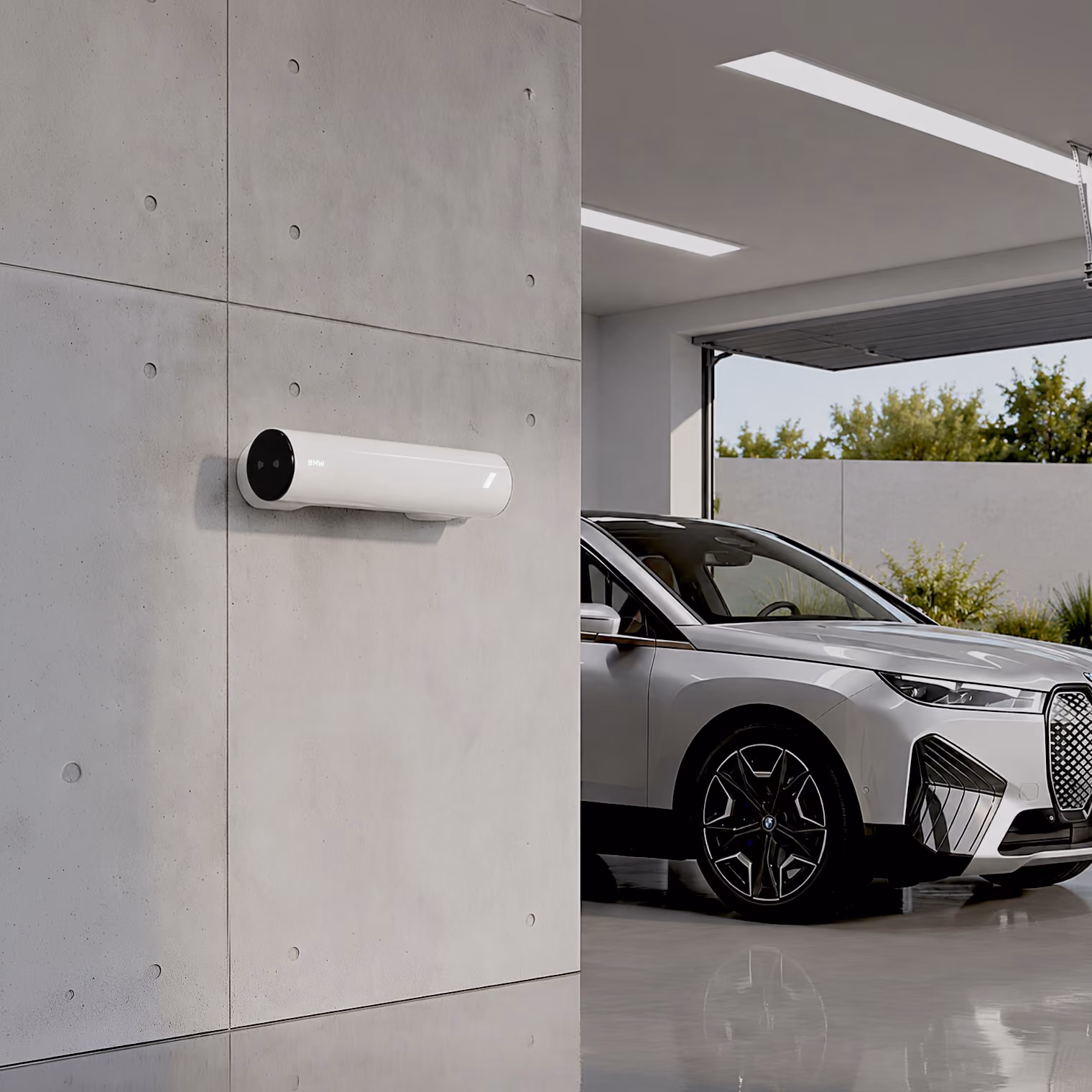

Designed to perform reliably in garages, carports, office buildings and public environments. Its durable construction ensures long-term performance across a wide range of installation scenarios.
Close
"The design of the Neue Klasse provides a very modern interpretation of what BMW has always stood for. With our new design language, the new BMW iX3 looks future-focused, modern and timeless – but above all, more BMW than ever."
Close
Astreea Charger is not a prototype. It's a production-ready product, manufactured by ARSAT—a precision manufacturer trusted by the aerospace and automotive industries. From engineering to machining and final assembly, every detail is built with the precision, discipline and repeatable quality required for production at scale.
From Low-Cost Wallbox
to Brand-Defining Charger
Built to Last
Stainless steel construction designed for premium environments and decades of reliable operation.
Always Connected
Cloud-connected platform with OTA updates, Plug & Charge and advanced energy management.
Smart home ready
Designed to become part of the home energy ecosystem.
Future-Ready
Native AC V2G architecture prepared for tomorrow's energy ecosystem.
Most wallboxes are designed to disappear.
Animatie chargere din plastic
Modular Architecture
Available in single or dual 22 kW configurations to adapt to different installation requirements.
Built for Extreme Conditions
Engineered for reliable operation in high-traffic environments and extreme weather. An intelligent thermal management system with five temperature sensors, two humidity sensors, active cooling fans and integrated heating elements continuously monitors and regulates internal conditions to ensure optimal performance from −30°C to +60°C (−22°F to +140°F).
Full Technical Specifications
-
desen tehnic valentin
Compliance & Certifications
Charging Standards
IEC 61851-1:2019, IEC 61851-21-2:2021
Connector Standard
IEC 62196 Type 2
Low Voltage Directive
2014/35/EU
Radio Equipment Directive (RED)
2014/53/EU
Protection Rating
IK10
Enclosure Protection
EN 60529
MID Certification
Supported
Eichrecht
Certification pathway (Display Version)
Grid Compliance
§14a EnWG, OVE R 37, CEI 0-21
Vehicle Communication
ISO 15118-20 Ready
Plug & Charge
Supported
Vehicle-to-Grid
AC V2G Ready
Electrical Specifications
Input Voltage
3Ph + N + PE, 400 VAC
Maximum Input Current
32 A or 2 × 32 A
Maximum Charging Power
22 kW or 2 × 22 kW
Charging Connector
Type 2
Real-Time Power Control
Online & offline configurable
Dynamic Load Management
OCPP-based
Photovoltaic Integration
Supported
Mechanical Specifications
Housing Material
Stainless steel
Installation
Indoor & Outdoor
Operating Temperature
−30°C to +60°C (−22°F to +140°F)
Humidity
5–95% non-condensing
Protection Class
RCBO Type A, 30 mA, 40 A, 50 Hz
Dimensions Wallbox (22 kW)
562 × Ø114 mm
Dimensions Wallbox (2 x 22 kW)
? × Ø114 mm
Connectivity
Wi-Fi
2.4 GHz
Ethernet
Supported
Bluetooth
Supported
RFID
13.56 MHz
NFC
Supported
Modbus TCP
Supported
BACnet
Supported
MQTT
Supported
Communication Protocols
OCPP
1.6J & 2.0.1
ISO 15118-20
Ready
Plug & Charge
Supported
Vehicle-to-Grid
AC Bidirectional Ready
Building Management Systems
Supported
Security & Embedded Platform
MCU Architecture
Dual-core 32-bit RISC-V
Clock Frequency
400 MHz
Secure Boot
Supported
Vehicle-to-Grid
Supported
Flash Encryption
Supported
Cryptographic Accelerators
Hardware-based
Digital Signature Peripheral
Supported
Dedicated Key Management Unit
Integrated
TLS Encryption
TLS 1.3
Cyber Resilience
Designed according to Cyber Resilience Act (CRA) principles
OTA Firmware Updates
Supported
Smart Charging Features
BMW Digital Key Authorization
Compatible with Apple Wallet & Google Wallet
RFID/NFC Authorization
Supported
Charging Scheduler
Supported
Charging History
Supported
User Management
Multi-user with configurable permissions
Remote Diagnostics
Cloud-based
Web Analytics
Energy, sessions, users & charger monitoring
Smart Home Integration
TLS 1.3
Cyber Resilience
Supported
Building Management System (BMS)
Supported
Software
Mobile Application
iOS & Android
Cloud Platform
Supported
Remote Firmware Updates
OTA
Remote Monitoring
Supported
Energy Analytics
Supported
Manufacturing
Designed In
European Union
Engineered In
European Union
Manufactured In
Romania (ARSAT Industrial Ecosystem)
Product Philosophy
Digital • Electric • Circular
